Metal Briquette Machine

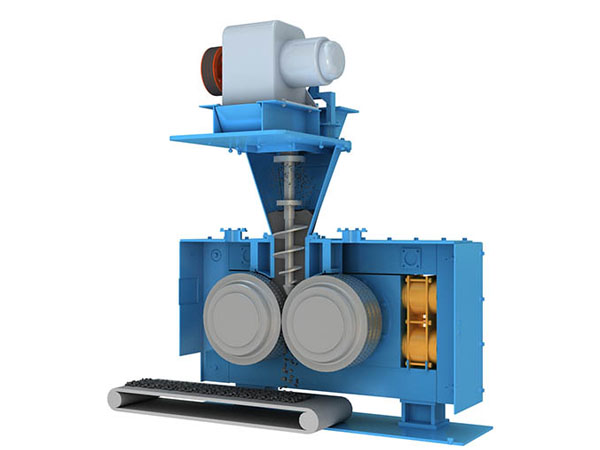

A metal briquette machine, also known as a metal briquetting press or metal briquetting machine, is a piece of equipment designed to compact and process various metal scraps into cylindrical or other shaped briquettes. These briquettes can be melted down and reused in metal manufacturing processes, reducing waste and improving efficiency. Metal briquette machines are widely used in the metal recycling industry to handle different types of metal scraps, including steel, aluminum, copper, brass, and more.

Metal briquette machines play a crucial role in sustainable metal recycling by reducing the volume of metal waste and facilitating its reuse in manufacturing.

Send E-mail Request Quote

Introduction of Metal Briquette Machine

Technical Parameters

Features

Maintenance and Precautions

In industrial production, some scrap metal scraps such as iron filings and aluminum scraps are often produced. How to recycle these metal scraps to reduce corporate costs and environmental pollution is particularly important. As a scrap metal scraping machine, the metal briquetting machine can form metal scrap briquettes and provide suitable return materials for related enterprises. This is very important for improving the production environment, reducing the labor intensity of workers and improving people’s environmental awareness.

The main engine adopts a multi-cylinder linkage structure, and has one master cylinder, two side cylinders, one cover cylinder and one flip cylinder, and a total of five hydraulic cylinders. The main hydraulic cylinder pushes the indenter to reciprocate back and forth, the side cylinder pushes the indenter to reciprocate left and right, the cover cylinder drives the cover plate to open and close, and the flip cylinder pushes the flip mechanism to perform the flipping motion.

Metal briquetting machine can be used for cans, paint buckets, iron cans, scrap iron, scrap steel, iron sheets, bicycles, color steel tiles, light and thin materials, pig iron, thin iron, lulu cans, red cattle cans, scrap aluminum, scrap copper, iron Waste metal such as barrels, car shells, car shelves, metal trims, aluminum alloys, etc. are once pressed and formed.

Mainly used in recycling processing industry and metal smelting industry. Various metal scraps, steel shavings, scrap steel, scrap iron, scrap copper, aluminum scrap, aluminum shavings, dismantled car shells, waste oil drums and other metal materials can be extruded into various shapes of qualified materials such as cubes and cylinders. It is convenient for storage, transportation and recycling, increasing the speed of furnace feeding, improving labor efficiency, and reducing transportation, manpower and smelting costs.

Model	Roller Dia.(mm)	Roller Width(mm)	Total Pressure（t）	Max. Line Specific Pressure（t/cm）	Main Motor Power(kw)	Capacity(t/h)	Weight(t)
GY520-150	520	196	150	8	55	2.2-3.5	13.7
GY650-220	650	205	220	11	90	4-6.5	19.2
GY750-200	750	320	200	6	110	7-10	24.5
GY750-300	750	280	300	11	185	6-8.5	34
GY800-380	800	350	380	11	200	8-10	39.3
GY1000-350	1000	460	350	8	250	10-15	50
GY1000-450	1000	500	450	9	280	14-17	58.5
GY1000-500	1000	500	500	10	315	15-20	58.5
GY1000-500	1000	900	450	5	280	25-30	63
GY1000-540	1000	900	540	6	185×2	30-35	59.3
GY1200-800	1200	900	800	8	280×2	40	110
GY1400-1000	1400	1000	1000	10	355×2	50	156

The metal briquetting machine is mainly driven by the hydraulic pump to drive high-pressure oil into the hydraulic cylinder, causing the piston to produce axial displacement. The front joint of the piston rod rests on the bearing seat to meet the production pressure requirements. When there is too much feed between the two pressure rollers or metal blocks, the piston rod of the hydraulic cylinder will be overloaded, the hydraulic pump will stop, the accumulator will buffer the pressure change, the overflow valve will open to return oil, and the piston rod will shift The gap between the pressure rollers is enlarged so that the hard objects pass through the pressure roller, and the system pressure returns to normal, which can protect the pressure roller from damage. The metal press ball machine can adjust the pressure according to the requirements of the press ball density, and the production is flexible and flexible.

1. The roller skin is made of high hardness material, which is wear-resistant and durable. The equipment can press steel slag into balls at one time, with high output and high hardness.

2. Equipment energy consumption is low, maintenance is simple and convenient, a multi-purpose machine.

3. According to the feedback from customers and the physical characteristics of steel slag and mineral powder, a new generation of metal ball press equipment is continuously improved and debugged on the basis of the original ball press.

4. The utilization rate of waste has been improved, and it has good economic and social benefits.

Precautions for purchasing metal briquetting machine

1. If the user of the machine does not know much about the machine, he needs to bring a mechanical engineer as a staff;

2. The equipment selection should be accurate, and the appropriate model should be selected according to the processing volume;

3. The output of various models is directly related to the width of the roll, the wider the roll, the higher the output;

4. Don’t just look at the machine during the inspection, but mainly look at the materials, size, size, and bearings of his parts.

Metal briquetting machine maintenance

1. Anti-rust paint: apply mineral oil, paint or fire enamel, spray plastic, etc. on the outer surface of iron products.

2. Chemical rust removal: chemical methods can also be used to create a dense and stable oxide film on the appearance of iron products to prevent iron products from rusting. It is important to use acid to produce a chemical reaction with metal oxides to remove the metal from the powder ball press. A method for removing rust from the appearance of rust products, that is, the so-called pickling and rust removal, can only be manipulated in the workshop.

3. Electroplating and hot-dip plating: Use electroplating, hot-dip plating and other methods to coat steel with a layer of metals that are not easy to rust, such as zinc, tin, chromium, and nickel. The appearance of these metals can form a dense oxide film, thereby Prevent iron products from being rusted by contact with water, air and other substances.

4. High-pressure water abrasive rust removal: use the impact of high-pressure water jets and water skis to smash the corrosion and the load of the coating on the steel plate. It is characterized by no dust purification, no damage to the steel plate, and greatly improves the rust removal compliance up to 15 square meters /h above, the rust removal quality is good, but the steel plate after rust removal is easy to return to rust, and special wet rust removal paint must be painted. The mineral powder ball press has a great influence on the coating of general functional paint.
