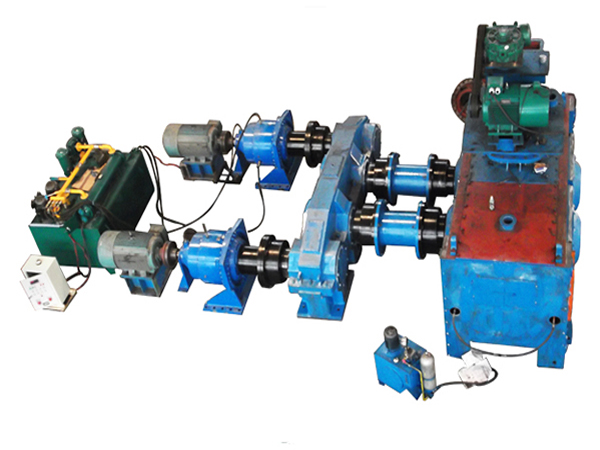

The super high pressure briquetting machine is a special equipment designed and produced for the fine-grained (300 mesh or more) and light-weight powder based on the high-pressure briquetting machine. It has many advantages like high pressure,good sealing effect,high efficiency and so on. The briquetting machine with a line pressure of 11T/CM can be called ultra high pressure. Super high pressure is suitable for forming the formation of calcium carbide, ultrafine powder, etc.

The pre-pressing transmission of the super high pressure briquetting machine adopts the structure of a direct connection with the hard-tooth reducer motor. Compared with the traditional open-belt drive, it is more stable,reliable,compact and sealed, which can avoid dust from entering the transmission system.The motor adopts a hard-tooth surface reducer with a direct connection structure. Compared with the traditional briquetting machine motor that through by the pulley or coupling and the worm gear reducer connection structure, its power transmission efficiency and accuracy are greatly improved, and the feedback on the pre-pressing motor on the electronic control system is more direct and accurate.

The sealing device around the roller shells of the traditional briquetting machine adopts steel structural, for which,there must be a certain gap between them to avoid rubbing. The sealing effect is poor, and once the roller shell may be damaged or even dropped when displaced or rubbed.The scraper and arc baffle on the guide nozzle of the pre-presser of the super high-pressure briquetting machine are made of special wear-resistant composite material, which forms a multiple contact seals together with the roller shell to replacing the old-style steel structure labyrinth seal, which not only greatly increases the tightness of the triangular compression zone to avoid the occurrence of large amount of leakage raw and spray material, but also can effectively protect the roller shell from damage because of the elasticity of the material itself , thereby greatly increasing the briquette formation rate and reducing useless energy consumption.

The hopper and spiral of the super high pressure ball press pre-presser can adjust the fine powder material with high gas content and strong fluidity. The silo and the feed inlet are enlarged to ensure sufficient material in the silo, and the material pressure of the pressing zone is greatly improved, which perform a better briquette forming effect.In addition,the whole silo adopt a closed structure,except for the air outlet,to ensure that the materials cannot overflow.According to our rich experience on briquetting, we have improved the lead, angle, length, precision of the spiral, so that the push material is more sufficient to facilitate the formation of the final briquettes.

Principle of super-high pressure briquetting machine

The powder and granular materials are compressed and formed between a pair of oppositely rotating pressure rollers. One of the pressure rollers is movable and pressure is provided by the hydraulic system. The surface of the pressure roller has a customized mold. The material may be a single material or a mixed material, or it may need to add a certain binder.

Order description

1. Raw Material Preparation

Gather raw materials such as biomass, agricultural residues, wood wastes, or other suitable materials.

Ensure the raw materials are dry and free from impurities that might affect the quality of the briquettes.

2. Size Reduction:

Use a crusher or shredder to reduce the size of the raw materials.

The goal is to achieve a uniform and manageable particle size for effective briquetting.

3. Drying (Optional):

Some raw materials may contain moisture, which can affect the briquetting process. If necessary, dry the materials to an optimal moisture content.

4. Mixing (Optional):

For certain applications, it may be beneficial to mix different types of raw materials to achieve the desired characteristics in the final briquette.

5. Feeding into the Briquetting Machine:

The prepared raw materials are fed into the super high-pressure briquetting machine.

The machine consists of a feeding system to introduce the raw materials into the compression chamber.

6. Compression Chamber:

The compression chamber is a crucial part of the machine where the raw materials are subjected to extremely high pressure.

A hydraulic system or other high-pressure mechanism compresses the raw materials.

7. Briquette Formation:

The compressed raw materials are formed into briquettes.

The intense pressure causes the particles to bind together, forming a compact and dense briquette.

8. Cooling (Optional):

Some machines may include a cooling system to reduce the temperature of the newly formed briquettes.

This step helps in maintaining the integrity and quality of the briquettes.

9. Collection and Storage:

The finished briquettes are collected and may be stored for future use or transportation.

Proper handling and storage are essential to prevent damage to the briquettes.

10. Quality Control:

Conduct quality checks on a sample of briquettes to ensure they meet the required standards.

This may include testing for density, moisture content, and other relevant parameters.

11. Packaging (Optional):

If the briquettes are intended for commercial sale, they may be packaged for distribution.

Different materials have different balling properties, and the selection of briquetting machine and process is also different. In addition, the requirements for the final product are also important factors that determine the process.

The pelletizing performance of the material is determined by the material itself, such as the fineness, particle size, moisture, composition, etc. of the material, which usually requires testing to determine.

Not all materials have spherical properties. If the bonding force between the material particles is low, a suitable adhesive is necessary.

According to the physical properties of the material and the purpose of ball formation, the selection of the adhesive needs to make a choice in its bonding performance and use cost. Various (liquid or solid) binders such as starch, bentonite, asphalt, quicklime, cement, water, flour, lignosulfonate, molasses, polymers, resins, sodium silicate and new types of specific applications The composite binder and so on.

The key point of the process of the ball pressing equipment is “continuous quantification”, so continuous batching, mixing, and subsequent drying links that may be required in the process are usually required.

In practice, Zymining has accumulated considerable experience and has a complete turnkey system (including electrical interlocking and interface control) capabilities. The integrated system of the forming unit is used to meet your specific needs.

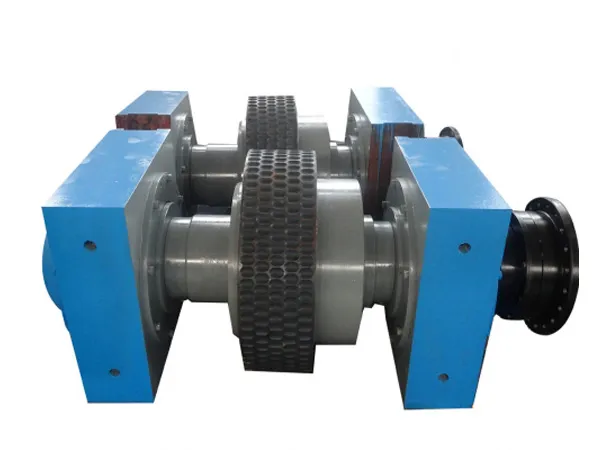

Spare part description：Roller assembly

Roller assembly is the core part of briquetting machine. Particles are fed by squeezing them between two rollers rotating in opposite directions and then form final briquettes. It is composed of items such as main shaft, roller shell, bearing, bearing support and seals. Adopting high quality bearing steel, integral rollers are finished by multiply processes such as machining, UT, milling, hot treatment. After hot treatment, its surface hardness could be up to standard. All rollers are high wear-resisting and replaced easily. The main shaft is made of forging 40Cr, which is processed by multiple processes and processes such as drilling, turning, heat treatment and milling.

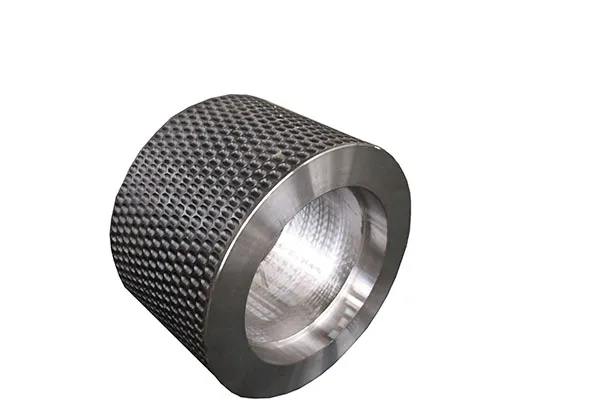

Spare part description：Roller shell

The roller shell is made of high quality bearing steel and is processed by multiple processes such as turning, flaw detection, milling and heat treatment. The surface hardness can reach above HRC58.

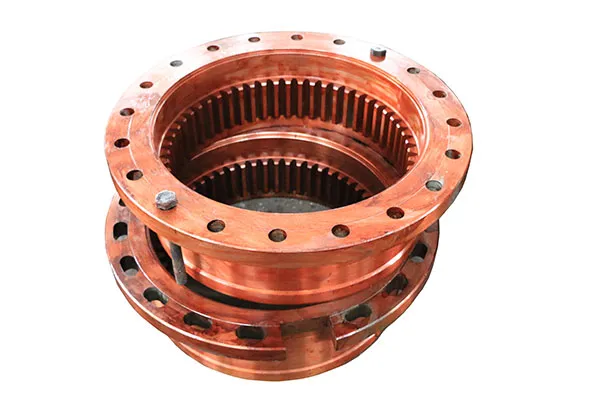

Spare part description：Internal ring gear
